Magnetic Spot
Hospitality interior — application example
In applicationHospitality interior

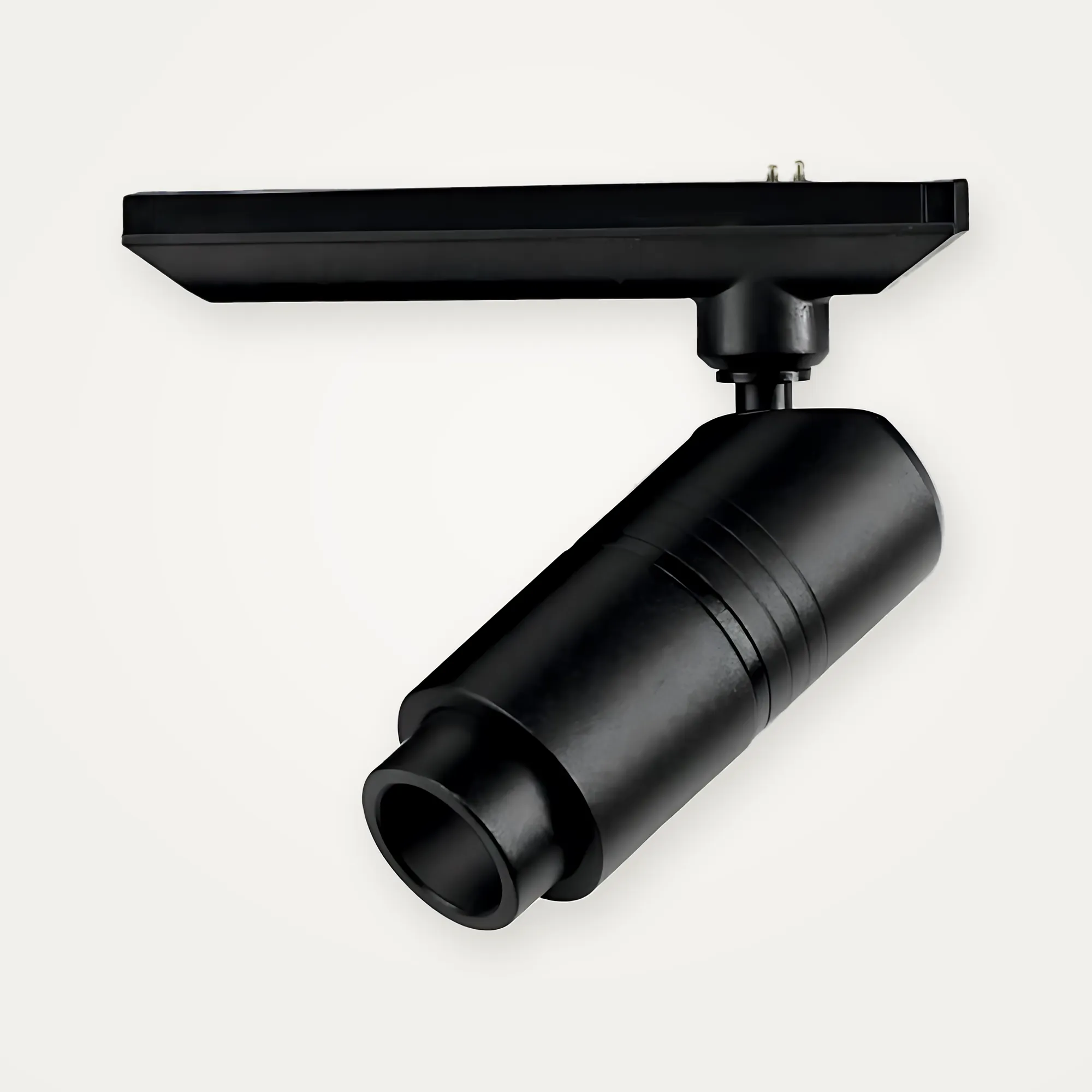

J045TZ

Magnetic Spot

Mini magnetic spot light with a precision-machined aluminium body and electrostatic powder-coated finish. Integrated heat dissipation delivers up to 50,000 hours of flicker-free light with no UV or IR radiation.

Power
3W
Beam
30°
Protection
IP20
CRI
80Ra

Colour temperature

3000K4000K5000K6500K
MakeALOXE
ModelJ045TZ
SeriesMagnetic Spot
Wattage3W
Luminous flux180LM
Beam angle30°
InputDC12V-24V
LED makeCREE / OSRAM
CRI80Ra / 90Ra
Ingress protectionIP20
FinishBlack / White
Dimensions60×8 mm base, 40 mm body (Ø19)
InstallationInsert to the track Jx2600 BK
ControlDimmable

Applications

Jewellery, watch, antique and other display cabinets; small-space accent lighting

Enquire about this product Catalogue

Specifications as published on the ALOXE data sheet. Custom finishes, CCTs and optics on request.

Magnetic & Cabinet

You may also like

View all 69
Magnetic Track Spot J004TMagnetic Spot
J004T

Magnetic Track Spot

3W30°IP20
Magnetic Track Spot J005TMagnetic Spot
J005T

Magnetic Track Spot

5W30°IP20
Magnetic Zoomspot J006ZTMagnetic Spot
J006ZT

Magnetic Zoomspot

5W15°–45°IP20
Framing Track Spot J007FTMagnetic Spot
J007FT

Framing Track Spot

5W15°+IP20

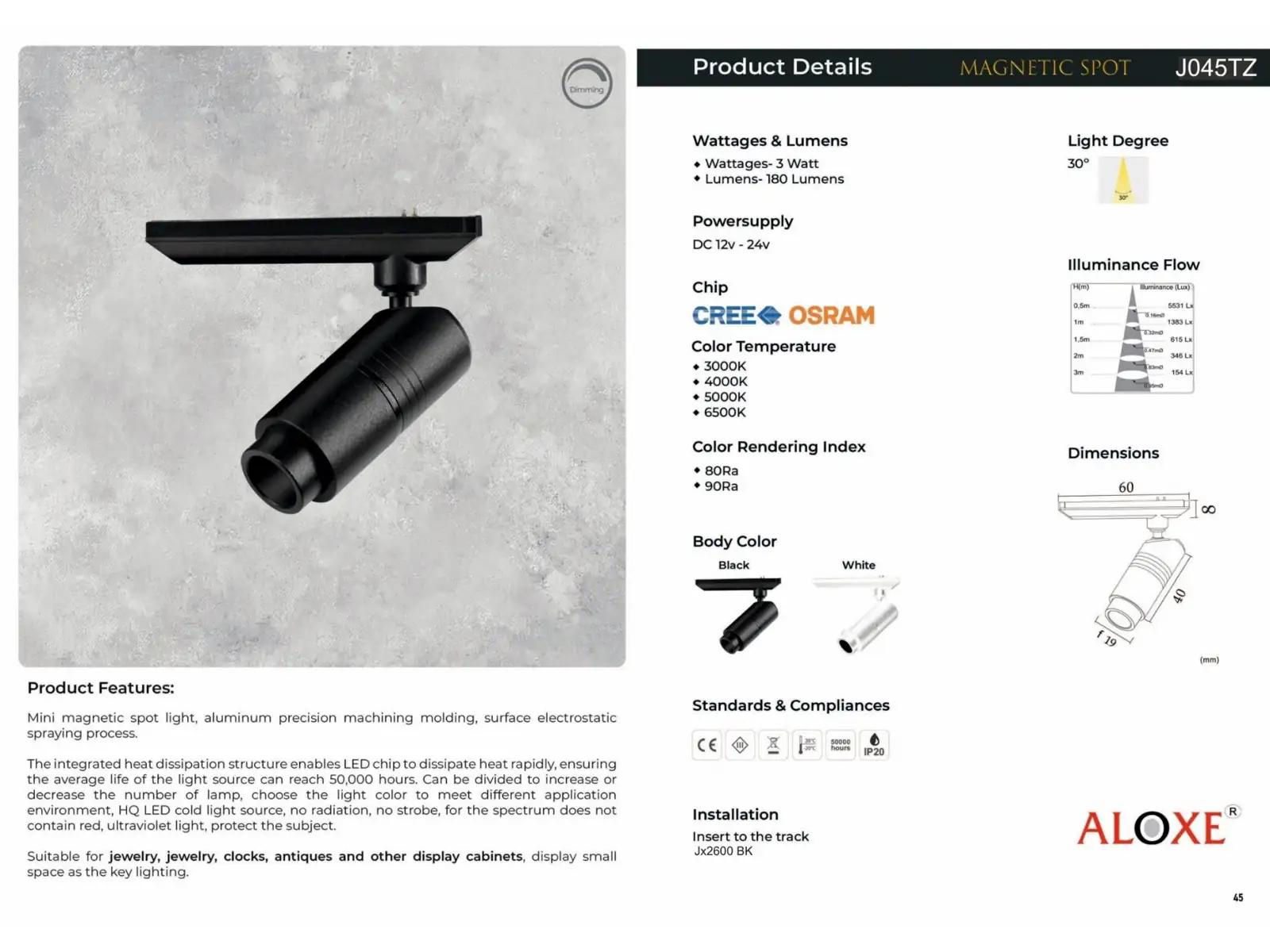

ALOXE data sheet for Magnetic Spot
