J069TF
Framing Track Spot

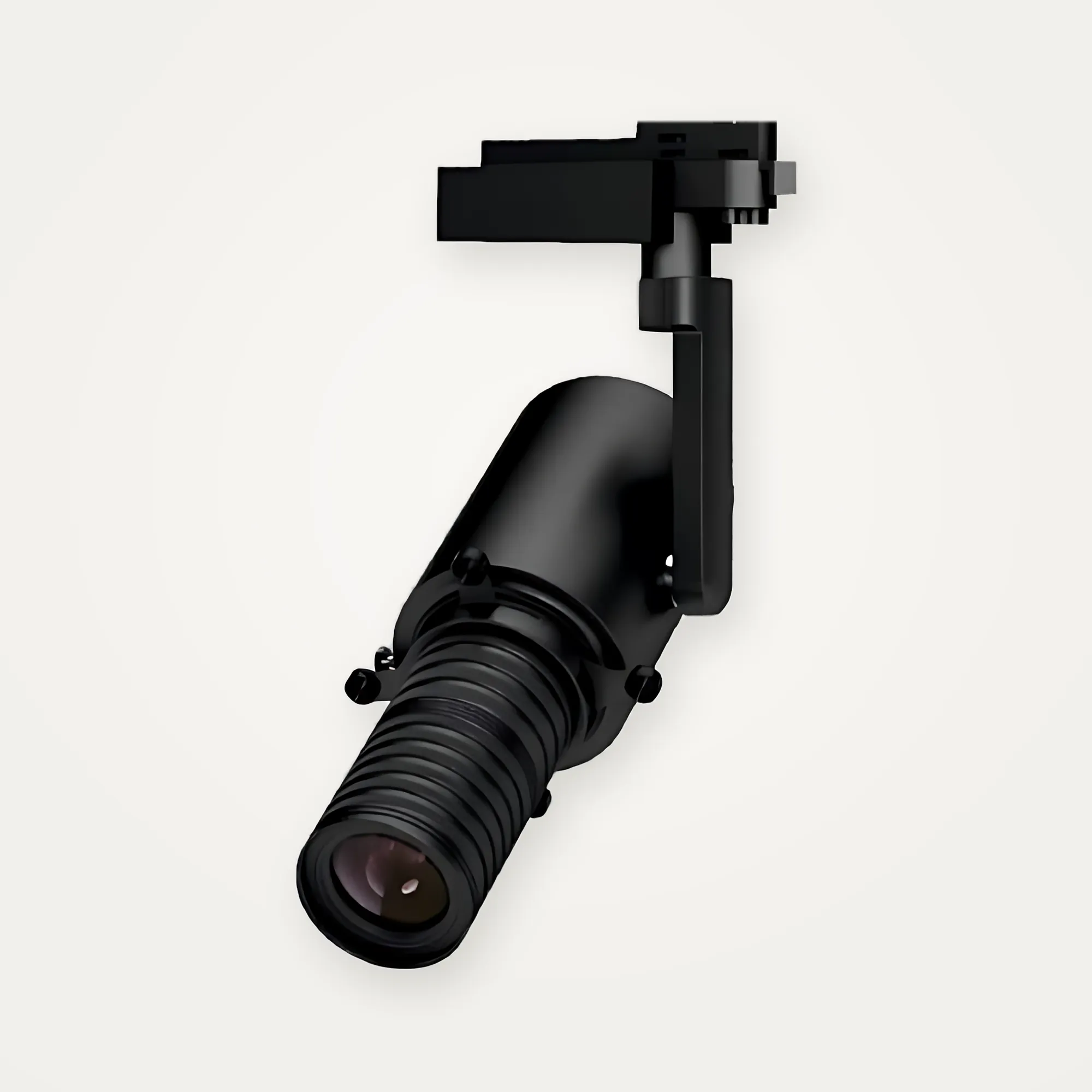

Die-cast aluminium framing spotlight for track systems with patented zoom optics (beam adjustable 15°–60°). Available with on/off, phase-cut or DALI dimming.
- Power
- 10W / 20W / 30W
- Beam
- 35°
- Protection
- IP20
- CRI
- 80Ra
Colour temperature
3000K4000K6500K
| Make | ALOXE |
|---|---|
| Model | J069TF |
| Series | Track Spot |
| Wattage | 10W / 20W / 30W |
| Luminous flux | 100LM |
| Beam angle | 35° |
| Input | AC240V |
| LED make | CREE / OSRAM |
| CRI | 80Ra / 90Ra |
| Ingress protection | IP20 |
| Finish | Black |
| Dimensions | 10W/20W: approx. 135–145 mm height; 30W: 165 mm height |
| Installation | Insert to the track JX11000 BK (10W) / JX12000 BK, JX18000 WH (20W) / JX25000 BK (30W) |
| Control | Dimmable |
Applications
Retail stores, art galleries, residences, schools, museums, offices, hospitality and healthcare

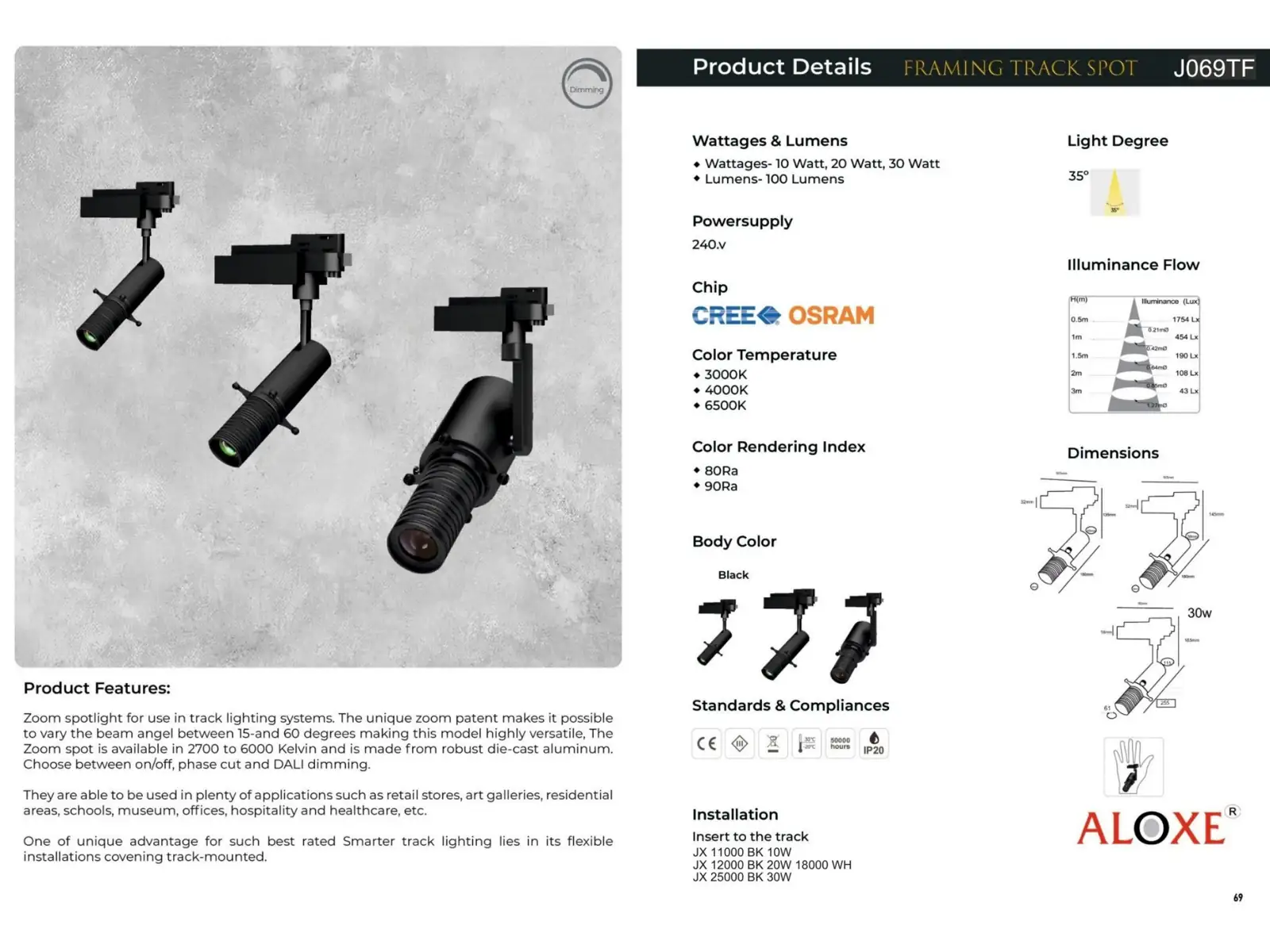

Specifications as published on the ALOXE data sheet. Custom finishes, CCTs and optics on request.
