JX003L

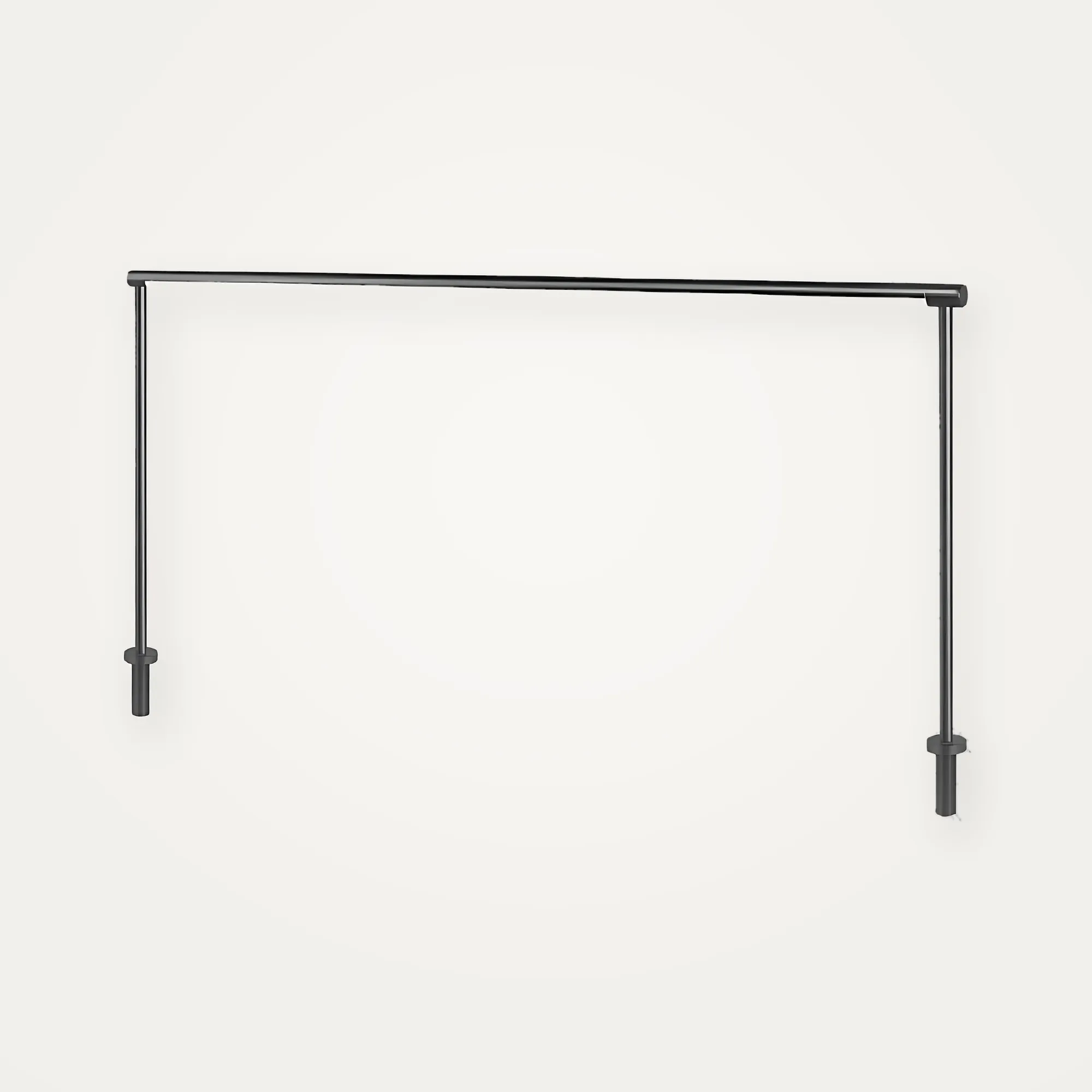

Linear Light
Super-slim linear light with a high-quality LED source, available in custom sizes; mercury-free and free of red and UV radiation to protect displayed items.
- Power
- 12W/M
- Beam
- 120°
- Protection
- IP20
- CRI
- 80Ra
Colour temperature
3000K4000K5000K6500K
| Make | ALOXE |
|---|---|
| Model | JX003L |
| Series | Cabinet Light |
| Wattage | 12W/M |
| Luminous flux | 95LM/W |
| Beam angle | 120° |
| Input | DC24V |
| LED make | CREE / OSRAM |
| CRI | 80Ra / 90Ra |
| Ingress protection | IP20 |
| Finish | Black / White / Gold |
| Dimensions | 1000×300 mm, Ø10 mm bar, Ø6/Ø10 mm legs; customised sizes available |
| Installation | Surface mounted; sizes Jx1–Jx6 (BK 2500–7000 / WH/S/G 2900–8500) |
| Control | Dimmable |
Applications
Pavilions, museum exhibitions, display cabinets, wardrobes

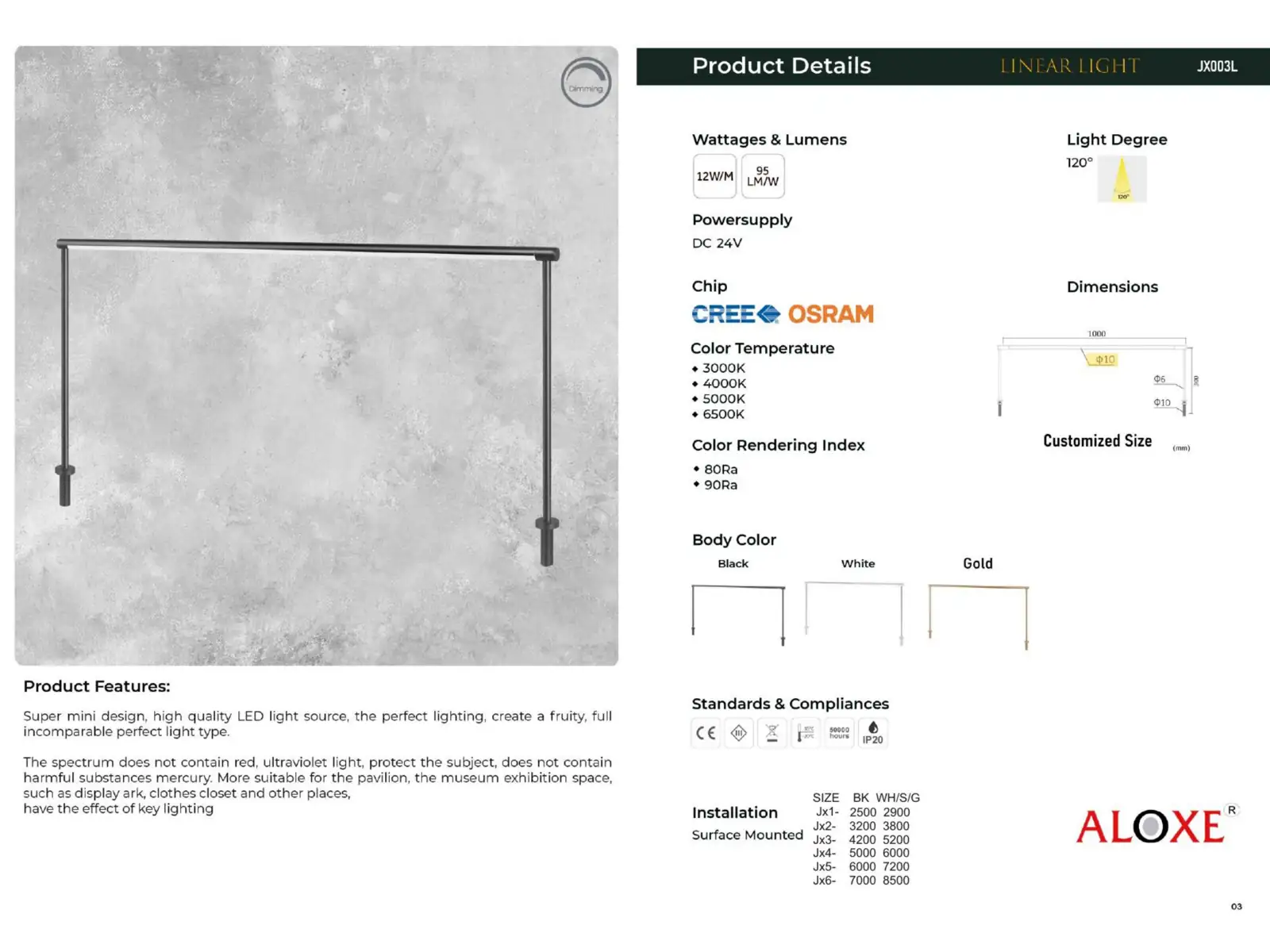

Specifications as published on the ALOXE data sheet. Custom finishes, CCTs and optics on request.
