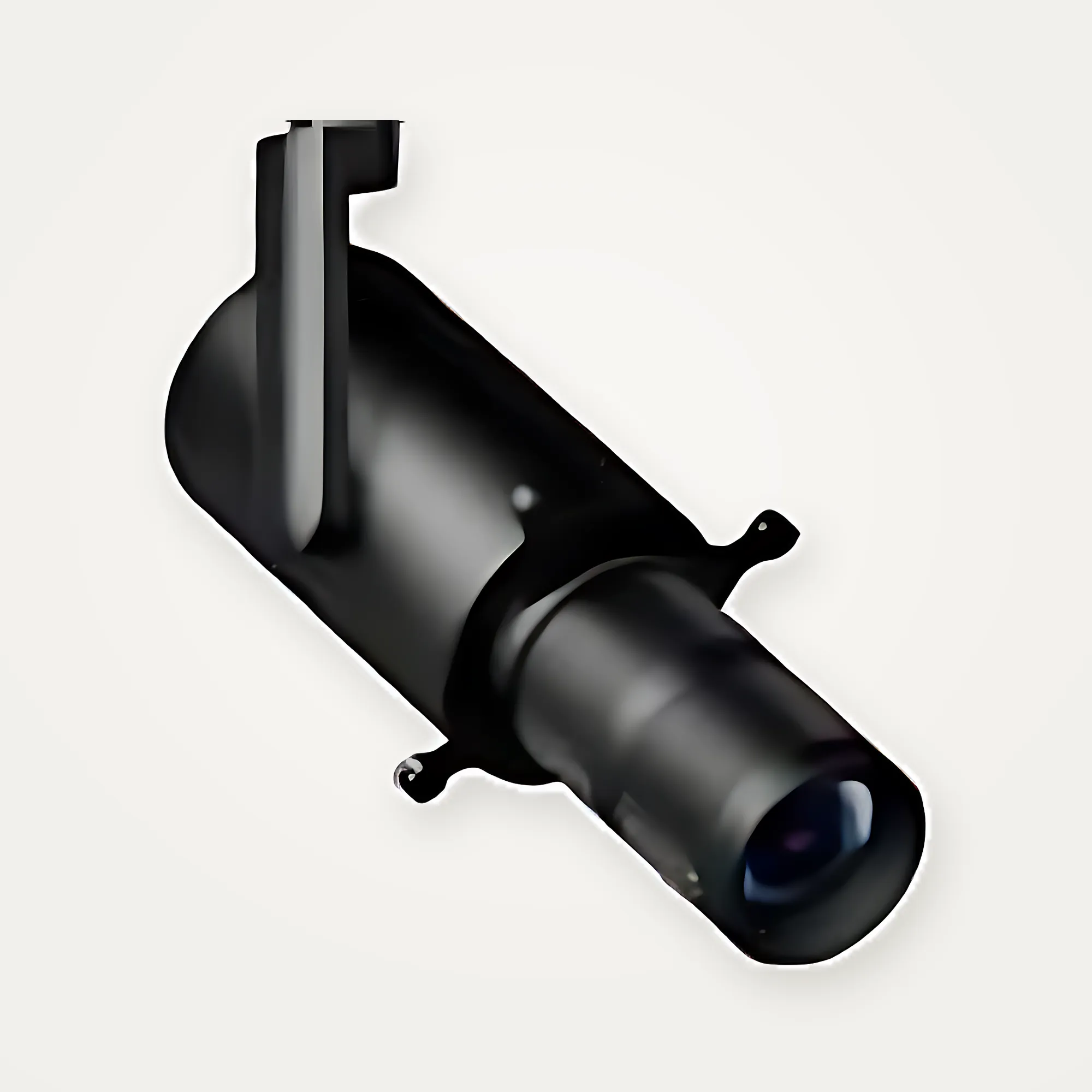

JX069TBF-30

Framing Track Spot

Precision framing projector with an 8-lens optical system and ≤2% distortion. Shape the beam into circles, squares, trapezoids or custom forms, and project gobos, logos or patterns with sharp edges.

Power

30W / 20W / 10W

Beam

25°–40°

Protection

IP20

CRI

Ra97 (on/off)

Colour temperature

Make	ALOXE
Model	JX069TBF-30
Series	Framing Spot
Wattage	30W / 20W / 10W
Beam angle	25°–40°
Input	AC220–240V / AC100–240V 50/60Hz
CRI	Ra97 (on/off) / Ra95 (CCT adjustable)
Ingress protection	IP20
Finish	Black / White
Dimensions	255 × 115 × 61 mm (30W)
Installation	Recessed · Surface mounted · Track mounted
Control	Onboard / 0-10V / DALI / DMX / Casambi / Zigbee / Bluetooth

Applications

Art galleries, museums, retail features, hospitality, logo and signage projection

• 58mm filters: UV, CCT, softening, gradient, ND, polarizing, custom
• Gobo projection: landscape, logo, starry sky, marketing, food
• Light shapes: circle, trapezoid, irregular, square, rhombus, triangle

Specifications as published on the ALOXE data sheet. Custom finishes, CCTs and optics on request.
