AA7224

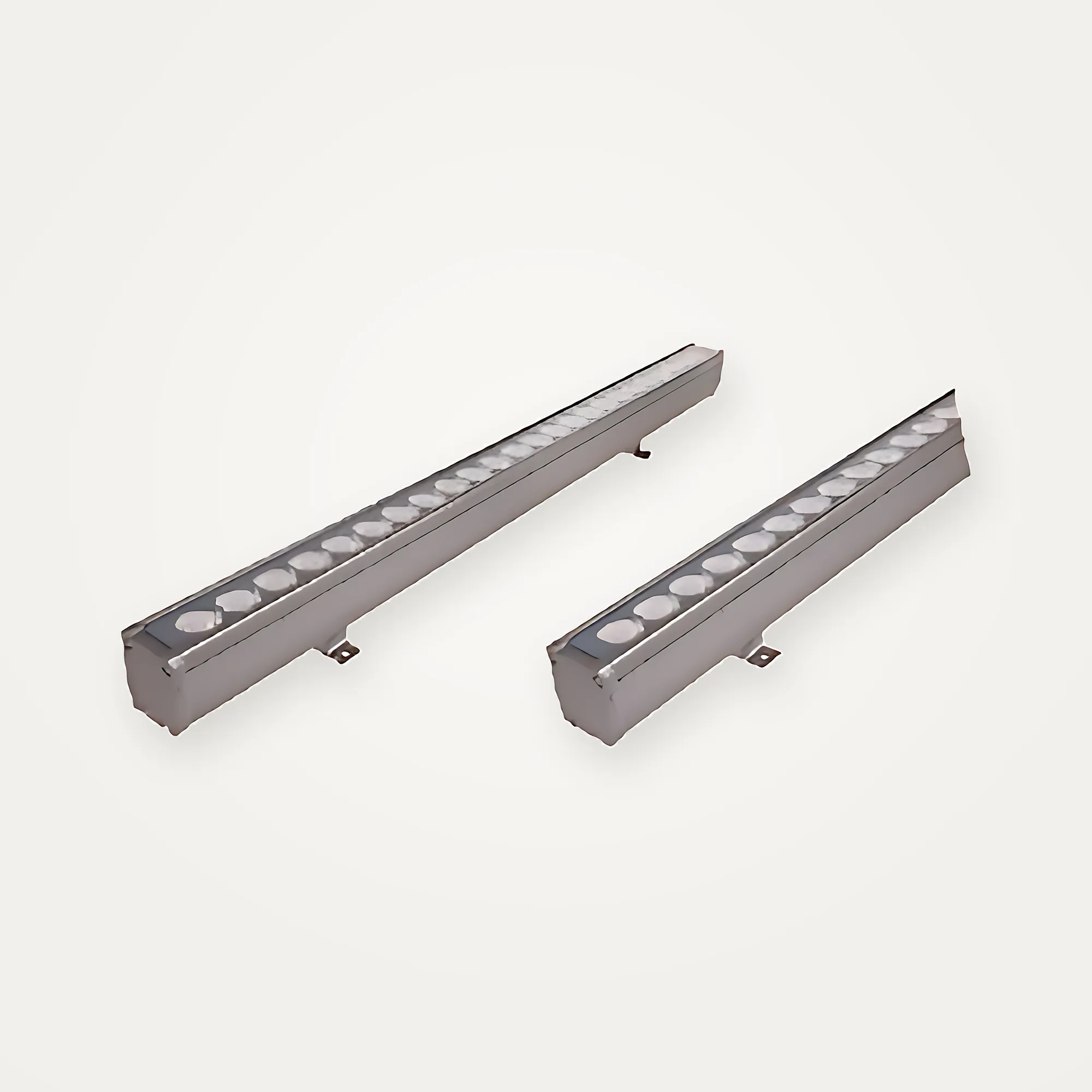

Wall Washer

High-output aluminium linear wall washer with 24 x 3W CREE LEDs and wide-range mains input. IP65 rated for exterior facades.

Power

72W

Beam

5°–45°

Protection

IP65

CRI

>80

Colour temperature

Make	ALOXE
Model	AA7224
Series	Linear Wall Washer
Wattage	72W
Luminous flux	100 lm/W
Beam angle	5° / 25° / 45°
Input	AC 85-265V 50-60Hz
LED make	CREE (24 x 3W)
CRI	>80
Ingress protection	IP65
Finish	Gray
Dimensions	L1000 x W60 x H72mm
Installation	Bracket mounted

Applications

Building facades and large wall surfaces

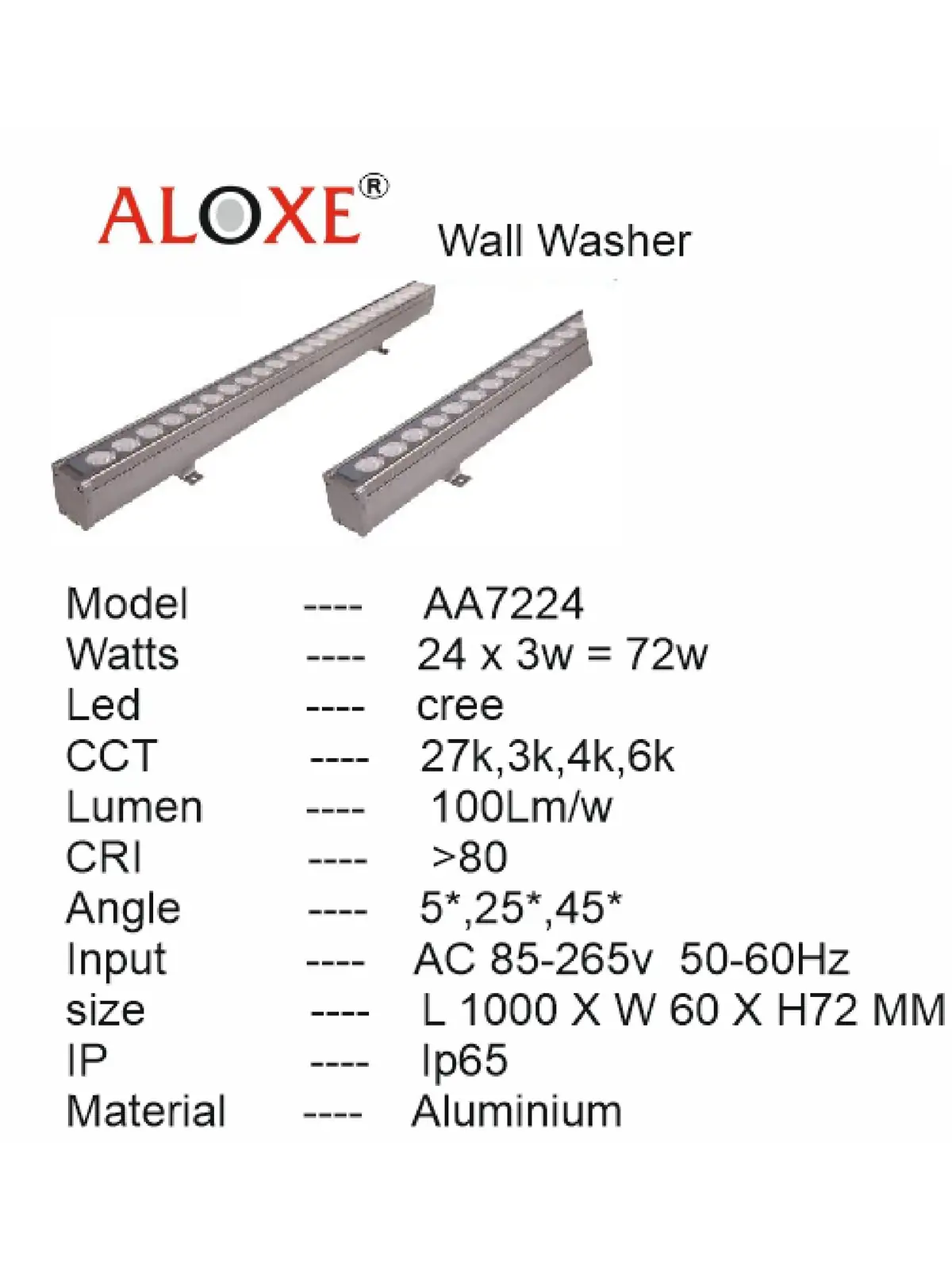

Specifications as published on the ALOXE data sheet. Custom finishes, CCTs and optics on request.
