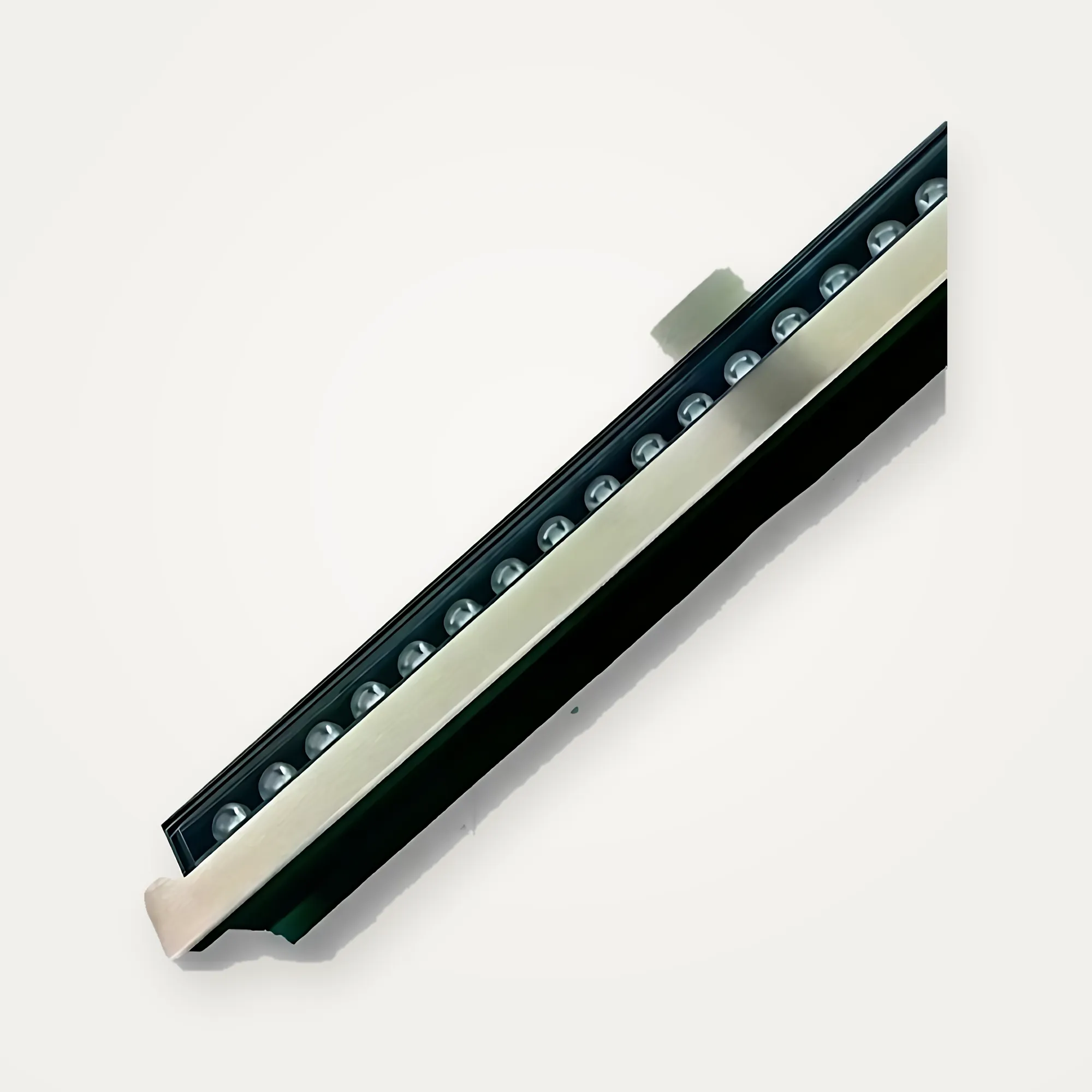

CW 901

Inground Linear Recessed Wall Washer

Stainless steel and aluminium inground linear wall washer offered in five lengths with a wide choice of optics. Available in RGB, RGBW and tunable CCT colour options.

Power

50W–6W

Beam

5°–Asymmetrical

Protection

IP66

Colour temperature

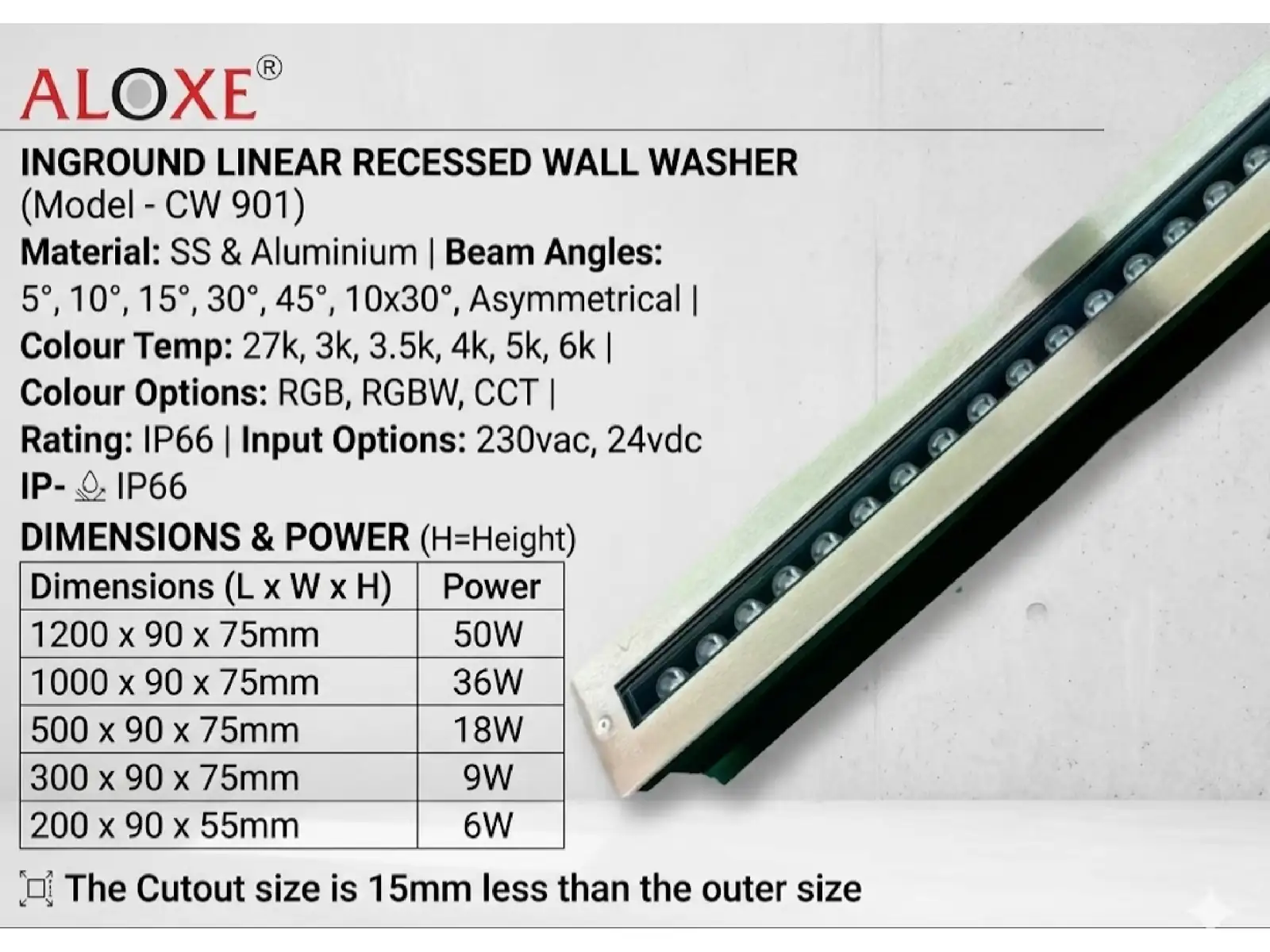

Make	ALOXE
Model	CW 901
Series	Inground Linear
Wattage	50W / 36W / 18W / 9W / 6W
Beam angle	5° / 10° / 15° / 30° / 45° / 10x30° / Asymmetrical
Input	230VAC, 24VDC
Ingress protection	IP66
Finish	Stainless Steel
Dimensions	1200x90x75mm (50W); 1000x90x75mm (36W); 500x90x75mm (18W); 300x90x75mm (9W); 200x90x55mm (6W)
Cut-out	15mm less than the outer size
Installation	Inground recessed

Applications

Facade grazing, landscape and architectural wall washing

Specifications as published on the ALOXE data sheet. Custom finishes, CCTs and optics on request.
