Outdoor Projectors

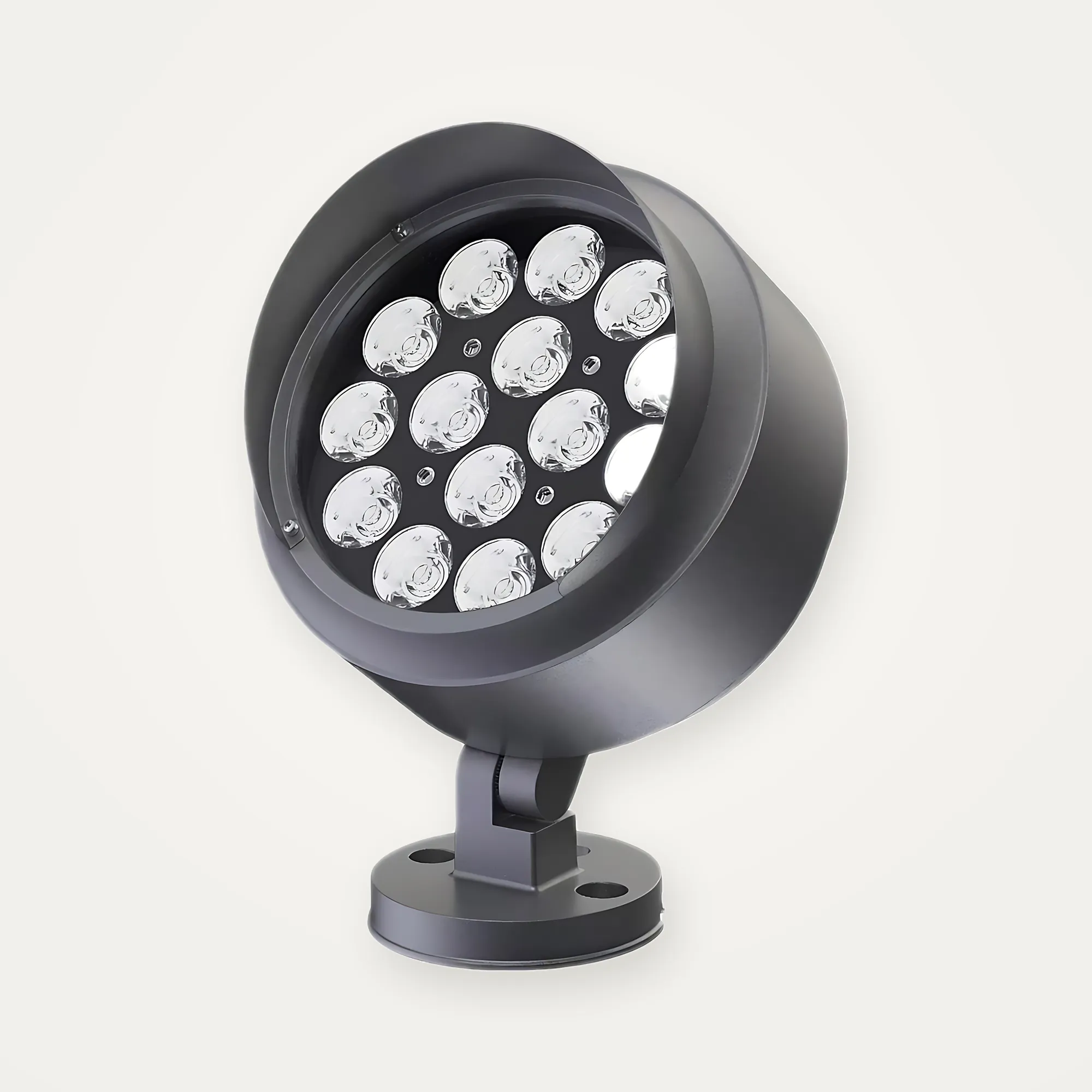

Round Outdoor Projector

Cylindrical projector range with glare shield in a durable aluminium alloy housing with enamel finish and tempered glass.

Power

5W–64W

Beam

3°–45°

Protection

IP65

Make	ALOXE
Series	Projector
Wattage	5W / 10W / 12W / 16W / 27W / 36W / 48W / 64W
Beam angle	3° / 10° / 24° / 45°
Input	230V AC / 24V DC
Ingress protection	IP65

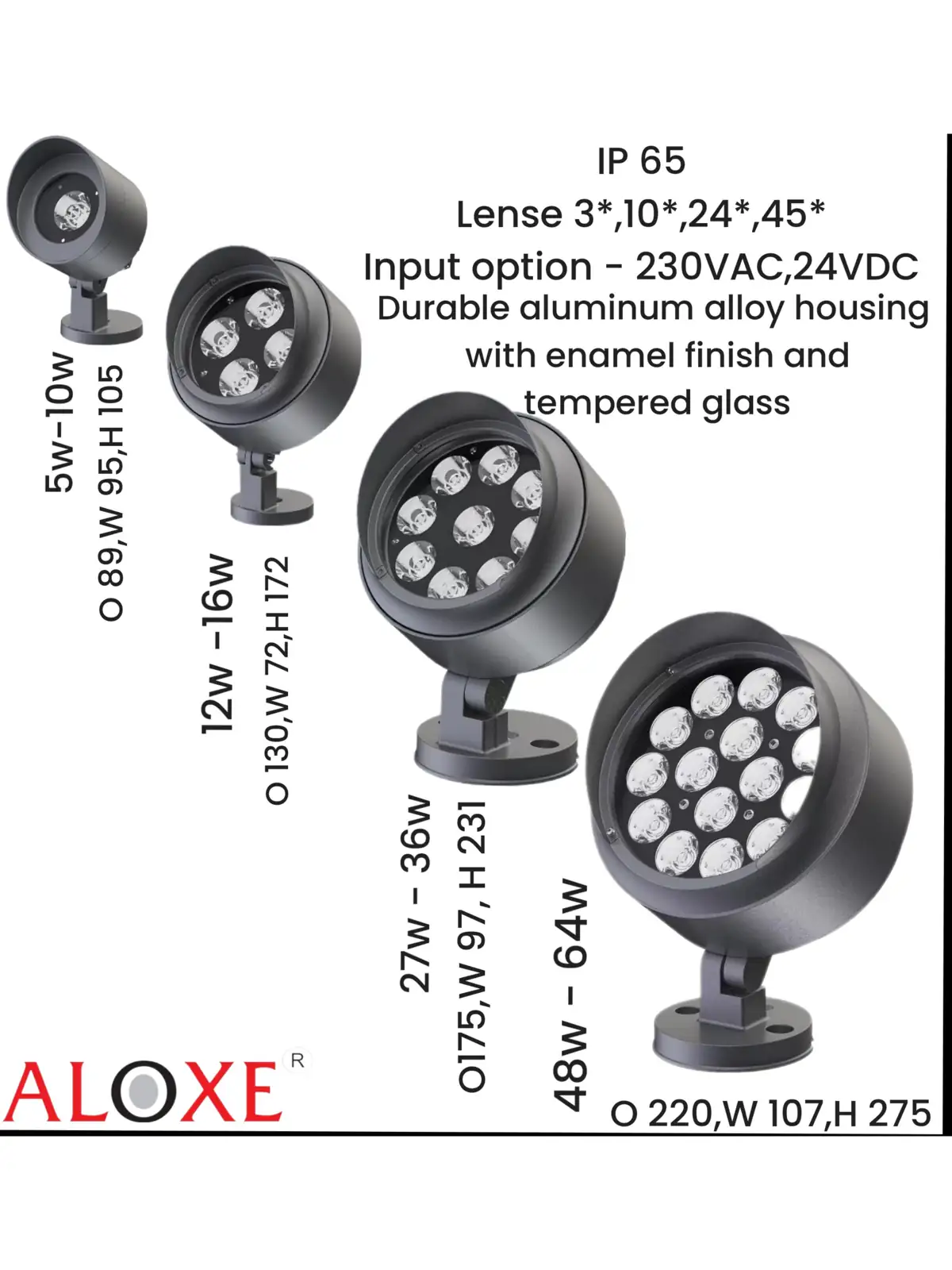

Dimensions	5-10W: Ø89, W95, H105 mm; 12-16W: Ø130, W72, H172 mm; 27-36W: Ø175, W97, H231 mm; 48-64W: Ø220, W107, H275 mm
Installation	Surface base with swivel knuckle

Specifications as published on the ALOXE data sheet. Custom finishes, CCTs and optics on request.
