SQ20

Wall Washer

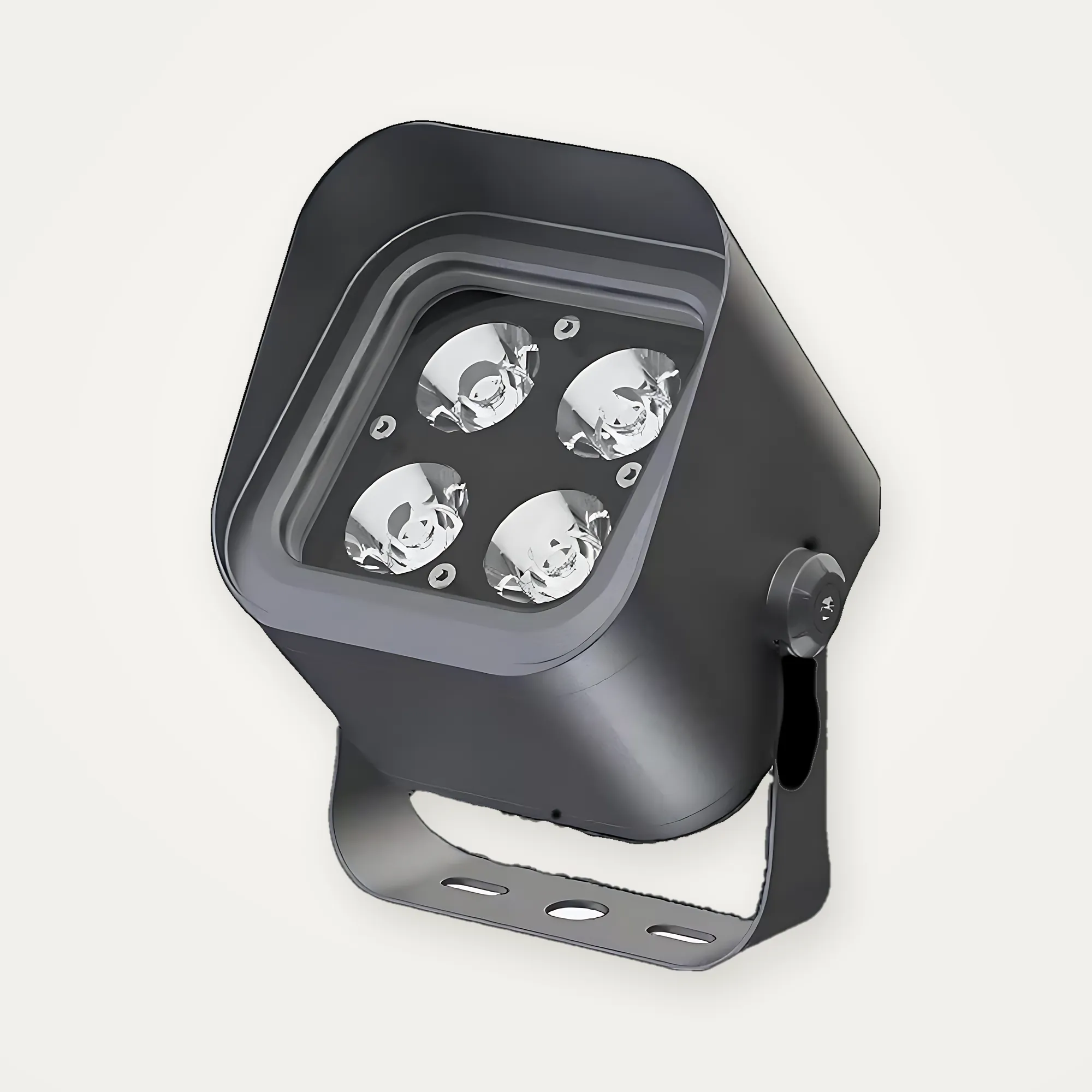

Compact square wall washer in die-cast aluminium with four lensed LEDs, available from 2700K to 6000K and RGB.

Power

12W

Beam

3°–45°

Protection

IP65

Colour temperature

Make	ALOXE
Model	SQ20
Series	Wall Washer
Wattage	12W
Beam angle	3° / 15° / 24° / 45°
Input	230V AC
Ingress protection	IP65
Dimensions	120 x 120 x 160 mm H
Installation	Adjustable bracket

Applications

Facade and building exterior lighting

Specifications as published on the ALOXE data sheet. Custom finishes, CCTs and optics on request.
